Machine Learning for Design

Lecture 8

Design and Develop Machine Learning Models - Part 2

2

ML Algorithms on Structured Data

3

Decision Trees

  • Trained with labelled data (supervised learning)
    • classes —> classification
    • values —> regression
  • Simple model that resembles human reasoning:
    • Answering a lot of yes/no questions based on feature values
4

Problems

  • Which questions to answer?
  • How many questions? (Tree depth)
  • In which order?
5

Same Problem, Multiple Trees

  • Am I hungry?
  • Is there a red car outside?
  • Is it Monday?
  • Is it raining?
  • Is it cold outside?
6

Same Problem, Multiple Trees

  • Am I hungry?
  • Is there a red car outside?
  • Is it Monday?
  • Is it raining?
  • Is it cold outside?
7

Same Problem, Multiple Trees

  • Am I hungry?
  • Is there a red car outside?
  • Is it Monday?
  • Is it raining?
  • Is it cold outside?
8

Same Decision, different tress

9

How to decide the best question to ask?

  • Accuracy
    • Which question helps me be correct more often?
  • Gini Impurity Index
    • A measure of diversity in a dataset —> diversity of classes in a given leaf node
      • index = 0 means that all the items in a leaf node have the same class
    • Which question helps me obtain the lowest average Gini impurity Index?
  • Entropy
    • Another measure of diversity linked to information theory
    • Which question helps me obtain the lowest average entropy?
10

Building the tree (pseudo-code)

  • Add a root node, and associate it with the entire dataset
    • This node has level 0. Call it a leaf node
  • Repeat until the stopping conditions are met at every leaf node
    • Pick one of the leaf nodes at the highest level
    • Go through all the features, and select the one that splits the samples corresponding to that node in an optimal way, according to the selected metric.
      • Associate that feature to the node
    • This feature splits the dataset into two branches
      • Create two new leaf nodes, one for each branch
      • Associate the corresponding samples to each of the nodes
    • If the stopping conditions allow a split, turn the node into a decision node, and add two new leaf nodes underneath it
      • If the level of the node is ii, the two new leaf nodes are at level i+1i + 1
    • If the stopping conditions don’t allow a split, the node becomes a leaf node
      • Associate the most common label among its samples
      • That label is the prediction at the leaf
11

A geometrical perspective

  • Step 1 - Select the first question
  • X>=5X>=5
    • Best possible prediction accuracy with one feature
12

A geometrical perspective

  • Step 2 - Iterate
  • x<5&y<8x<5 \& y<8;
  • x>=5&y>=2x>=5 \& y>=2
    • Perfect split of the feature space
13

Decision Trees: Pros

  • Simple to understand and interpret.
    • Trees can be visualized
  • Requires little data preparation
    • Other techniques often require data normalisation, dummy variables need to be created, and blank values need to be removed
  • Able to handle both numerical and categorical data
14

Decision Trees: Cons

  • Possible to create over-complex trees that do not generalize the data well
    • overfitting
  • Unstable —> small variations in the data might result in a completely different tree being generated
  • Biased trees if some classes dominate
15

Ensemble Learning

Idea: combine several “weak” learners to build a strong learner

Random Forest: Weak learners are decision trees

16
  • Build random training sets from the dataset
  • Train a different model on each of the sets
    • weak learners
  • Combination the weak models by voting (if it is a classification model) or averaging the predictions (if it is a regression model)
    • For any input, each of the weak learners predicts a value
    • The most common output (or the average) is the output of the strong learner
17
18

Clustering

19

What is clustering?

  • Grouping items that “belong together” (i.e. have similar features)
  • Unsupervised learning: we only use data features, not the labels\u2028
20
  • We can detect patterns
    • Group emails or search results
    • Customer shopping patterns
    • Regions of images
  • Useful when you don’t know what you’re looking for
    • But: can give you gibberish
  • If the goal is classification, we can later ask a human to label each group (cluster)
21

Why do we cluster?

  • Summarizing data
    • Look at large amounts of data
    • Represent a large continuous vector with the cluster number
  • Counting
    • Computing feature histograms
  • Prediction
    • Images in the same cluster may have the same labels
  • Segmentation
    • Separate the image into different regions
22

K-Means

  • An iterative clustering algorithm
    • Initialize: Pick K random points as cluster centres
    • Alternate:
      • Assign data points to the closest cluster centre
      • Change the cluster centre to the average of its assigned points
    • Stop when no points’ assignments change
23
24
Add 3 Centroids (randomly)
25
Assign Data Points
26
Update Centroids
27
Re-Assign Data Points
28
Update Centroids
29
Re-Assign Data Points
30
Update Centroids
31
Re-Assign Data Points - Stop
32
Add 4 Centroids (randomly)
33

K-Means Pros

  • Simple, fast to compute
    • Guaranteed to converge in a finite number of iterations
34

K-Means Cons

  • Setting k?
    • One way: silhouette coefficient
  • Algorithm is heuristic
    • It does matter what random points you pick!
    • Sensitive to outliers
35

Example of K-means not working

36

Back to Evaluation

37
  • No free-lunch: there is no one best machine learning algorithm for all problems and datasets
  • How well does a learned model generalize to a new evaluation set?
  • Challenge: achieving good generalization and a small error
38

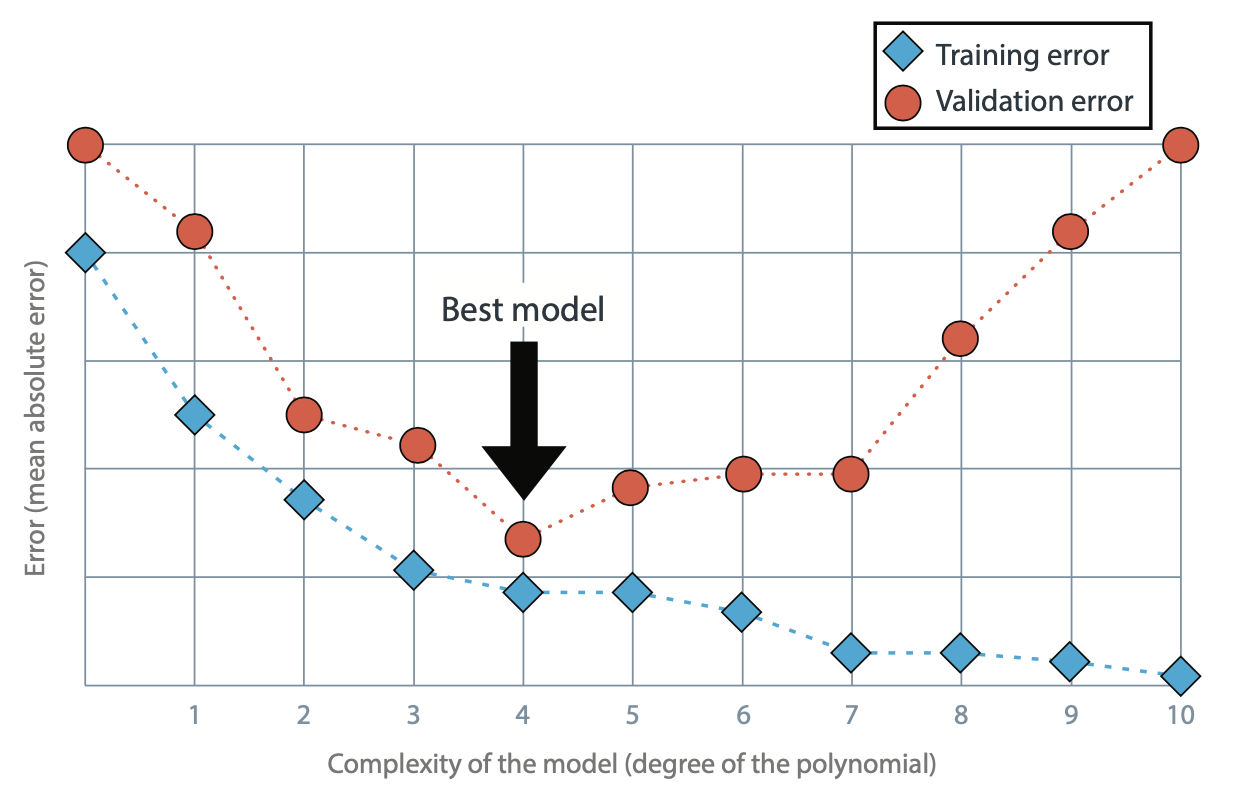

Underfitting vs. Overfitting

39

Regression

40

Classification

41

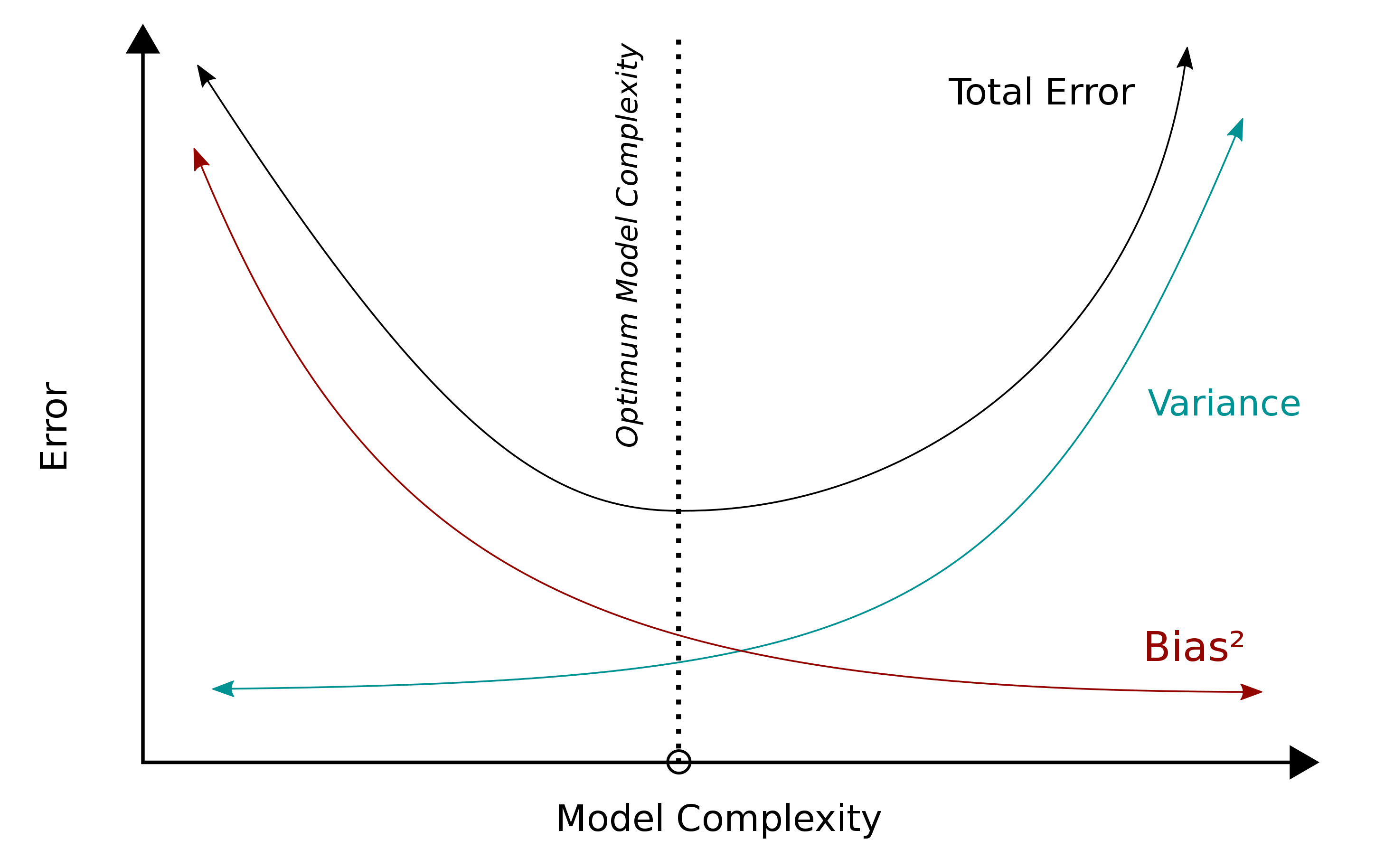

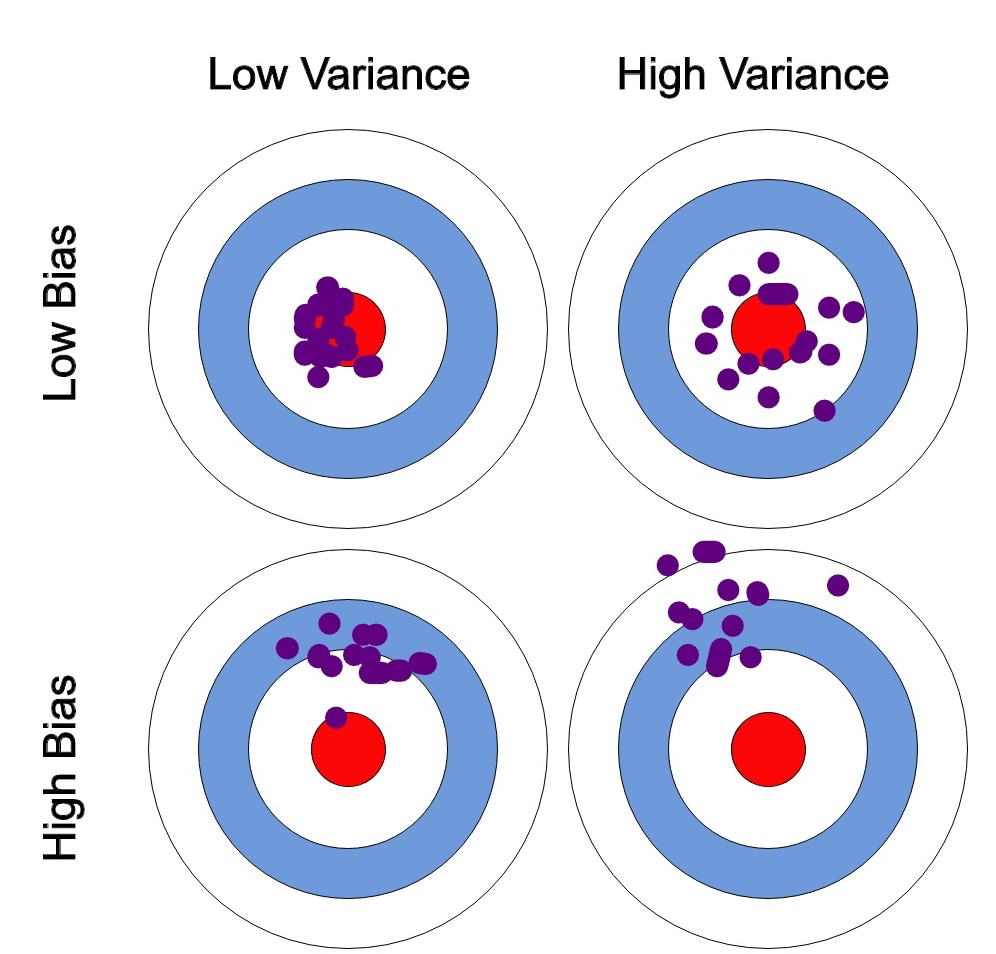

Components of expected loss

  • Noise in data: unavoidable
  • Bias: how much the average model differs from the true model
    • Error due to inaccurate assumptions/simplifications made by the model
  • Variance: how much models estimated from different training sets differ from each other
    • Too much sensitivity to the samples
42
43
44

Protect Against overfitting

Low bias and high variance

Low training error and high test error

  • The model
    • is too complex
    • matches too closely the idiosyncrasies (noise) of the training data
45

Protect Against underfitting

High bias and low variance

High training error and high test error

  • The model
    • is too simple
    • does not adequately capture the patterns in the training data
46
47

Tuning Hyper-parameters

  • Hyper-parameter: Inputs to the learning algorithms that control their behavior
  • Examples:
    • maximum tree depth in decision trees
    • number of neighbors kk in k-nearest neighbor
    • Neural networks: architecture, learning rate
48

Tuning Hyper-parameters

  • For a model to work well, they often need to be tuned carefully
    • Huge search space! may be inefficient to search exhaustively
49

Tuning Hyper-parameters: Approaches

  • DON’T optimise these numbers by looking at the test set!That is CHEATING!
  • Grid search: brute-force exhaustive search among a finite set of hyper-parameter settings
    • All combinations are tried, then the best setting selected
  • Random search: for each hyper-parameter, define a distribution (e.g., normal, uniform)
    • In the search loop, we sample randomly from these distributions
50

Double Cross-Validation

  • Cross-validation inside another cross-validation
    • To optimise over the hyperparameter
  • The minimum error is often not the most interesting. Try to understand the advantages/disadvantages
    • What errors are made? (inspect objects, inspect labels)
    • What classes are problematic? (confusion matrix)
    • Does adding training data help? (learning curve)
    • How robust is the model?
51
